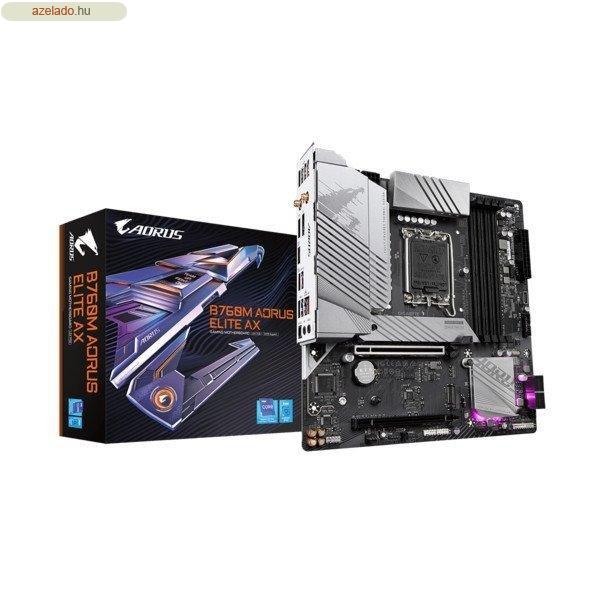

GIGABYTE Alaplap S1700 B760M AORUS ELITE AX INTEL B760, mATX
GIGABYTE Alaplap S1700 B760M AORUS ELITE AX INTEL B760, mATX CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core?,
Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please
refer to CPU Support List for more information. Chipset
Intel® B760 Express Chipset Memory Support for DDR5
7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /
6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) /
5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR DIMM sockets supporting
up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory
architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
memory modules Support for Extreme Memory Profile (XMP) memory modules
(Please refer Memory Support List for more information.) Onboard
Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1
x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for
HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum
resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP
2.3 (Graphics specifications may vary depending on CPU support.)
Audio Realtek® Audio CODEC High Definition Audio
2/4/5.1/7.1-channel * You can change the functionality of an audio jack
using the audio software. To configure 7.1-channel audio, access the audio
software for audio settings. Support for S/PDIF Out LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless
Communication module Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax,
supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for
11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate
may vary depending on environment and equipment.) Expansion Slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
(PCIEX16) * For optimum performance, if only one PCI Express graphics card is
to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x
PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support
for AMD CrossFireX? technology Storage Interface CPU: 1 x
M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0
x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID
5, and RAID 10 support for SATA storage devices USB Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB
Type-C® port with USB 3.2 Gen 2 support, available through the internal USB
header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 3.2 Gen
1 port on the back panel 4 x USB 2.0/1.1 ports available through the internal
USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports
on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x
8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan
header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB
LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1
x front panel header 1 x front panel audio header 1 x USB Type-C® header,
with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
2 x Thunderbolt? add-in card connectors 1 x Trusted Platform Module header
(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button
1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors 2 x SMA antenna connectors (2T2R) 1 x USB
Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x
DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio
jacks I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection
Fan speed detection Water cooling flow rate detection Fan fail warning
Fan speed control * Whether the fan speed control function is supported will
depend on the cooler you install. BIOS 1 x 256 Mbit
flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7,
ACPI 5.0 Unique Features Support for GIGABYTE Control
Center (GCC) * Available applications in GCC may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard
specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton® Internet Security (OEM version) LAN
bandwidth management software Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core?,
Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please
refer to CPU Support List for more information. Chipset
Intel® B760 Express Chipset Memory Support for DDR5
7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /
6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) /
5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR DIMM sockets supporting
up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory
architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
memory modules Support for Extreme Memory Profile (XMP) memory modules
(Please refer Memory Support List for more information.) Onboard
Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1
x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for
HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum
resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP
2.3 (Graphics specifications may vary depending on CPU support.)
Audio Realtek® Audio CODEC High Definition Audio
2/4/5.1/7.1-channel * You can change the functionality of an audio jack
using the audio software. To configure 7.1-channel audio, access the audio
software for audio settings. Support for S/PDIF Out LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless
Communication module Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax,
supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for
11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate
may vary depending on environment and equipment.) Expansion Slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
(PCIEX16) * For optimum performance, if only one PCI Express graphics card is
to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x
PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support
for AMD CrossFireX? technology Storage Interface CPU: 1 x
M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0
x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID
5, and RAID 10 support for SATA storage devices USB Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB
Type-C® port with USB 3.2 Gen 2 support, available through the internal USB
header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB 3.2 Gen
1 port on the back panel 4 x USB 2.0/1.1 ports available through the internal
USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports
on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x
8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan
header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB
LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1
x front panel header 1 x front panel audio header 1 x USB Type-C® header,
with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
2 x Thunderbolt? add-in card connectors 1 x Trusted Platform Module header
(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button
1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors 2 x SMA antenna connectors (2T2R) 1 x USB
Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x
DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio
jacks I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection
Fan speed detection Water cooling flow rate detection Fan fail warning
Fan speed control * Whether the fan speed control function is supported will
depend on the cooler you install. BIOS 1 x 256 Mbit
flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7,
ACPI 5.0 Unique Features Support for GIGABYTE Control
Center (GCC) * Available applications in GCC may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard
specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton® Internet Security (OEM version) LAN
bandwidth management software Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Adatlap
Ár: | 75.690 Ft |
A hirdető: | Kereskedőtől |
Értékesítés típusa: | Eladó |
Termék: | Alaplapok |
Feladás dátuma: | 2025.08.21 |
Eddig megtekintették 18 alkalommal |
