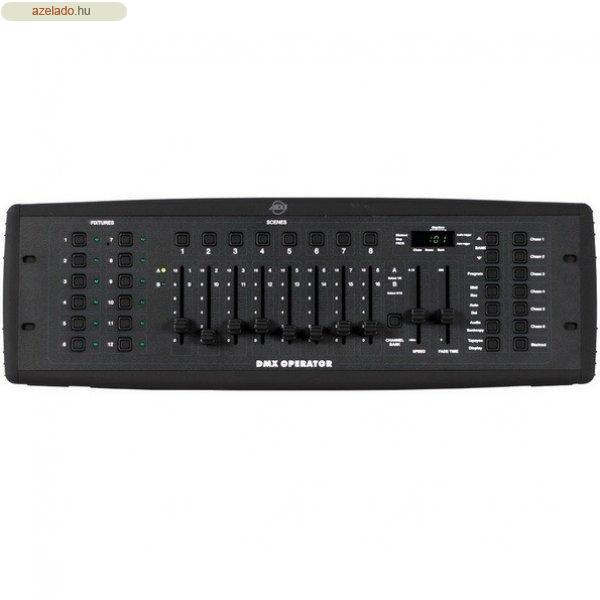

- Reliable DMX Controller- Programmable Up To 240 Scenes- 192 DMX
Channels- 12 Individual Fixture Channels- 8 Dimmer Faders- Easy To Use- MIDI
Controllable- An affordable solution for controlling DMX products- Control up
to192 DMX channels- Programmable up to 240 scenes- 12 individual fixture
channels - Control up to 12 separate intelligent lights with up to 16 DMX
channels per fixture- Fixtures with less than 16 DMX channels may be
combined  on 1 DMX scanner button- Record up to 6 programmable chases
with fade time and speeds- 8 individual faders provide easy programmability for
Intelligent Lighting or Dimmer Packs- MIDI controllable- DMX-512, 3-pin XLR
signal- Built-in Microphone- Remote control: Blackout controlled by MIDI input
signal- Blind function - override chases on the fly- Use in conjunction with the
ELP-DMX20 or the ELD-DMX20- Polarity switch to accommodate different types of
cable requirements- Power input: DC 9V-12V, 220 mA min. power supply included-
Dimensions: 5.25" x 19" x 2.5" (133 x 483 x 64 mm) 19 in.
rack mount - 3 rack spaces- Weight: 5 lbs (2.3 kgs)- Voltage: 120V/220V
