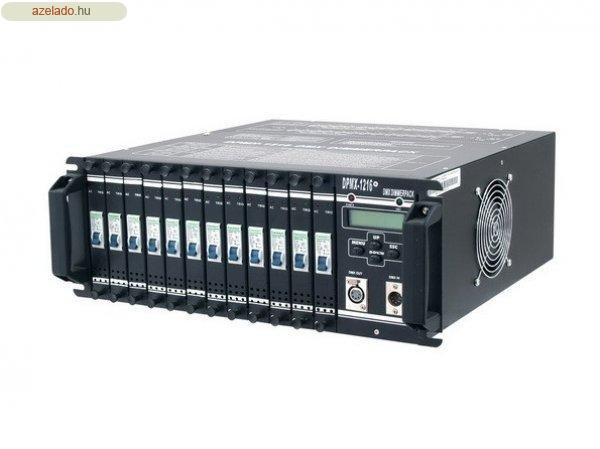

70064180  12-channel dimmer pack with up to 16 A output per
channel Modular design of the individual dimmer modules for quick and easy
change 3-phase or 1-phase power supply DMX512 control or analog
control Adjustable lamp preheat (0-50%) and limiter function to prolong bulb
life Curve function for selection of different fade modes Dim or switch option
assignable to each channel DMX Fail function: automatic digital input check to
detect DMX signal errors 12 built-in programs with adjustable speed Manual mode
for dimming capability without an external lighting controller All modes are
displayed via LCD Synchronization of several devices possible via DMX Automatic
circuit breaker per channel (type C) Channel outputs on the rear panel via pole
connectors Rack installation with 4 U Only for professional use Power
supply: 230-380 V AC, 50 Hz ~ Max. power output: 43470W Max.
current: 189 A Max. output/channel: 3680 W Max.
current/channel: 16 A Number of control channels: 12 Integrated
programs: 12 Fuse: 12 x C 16 A, 230 V DMX output: 3-pin female
XLR socket DMX input: 3-pin male XLR socket Power
input: Terminal block Dimensions (WxDxH): 482 x 485 x 176
mm Minimum mounting depth: 500 mm Weight: 27 kg
