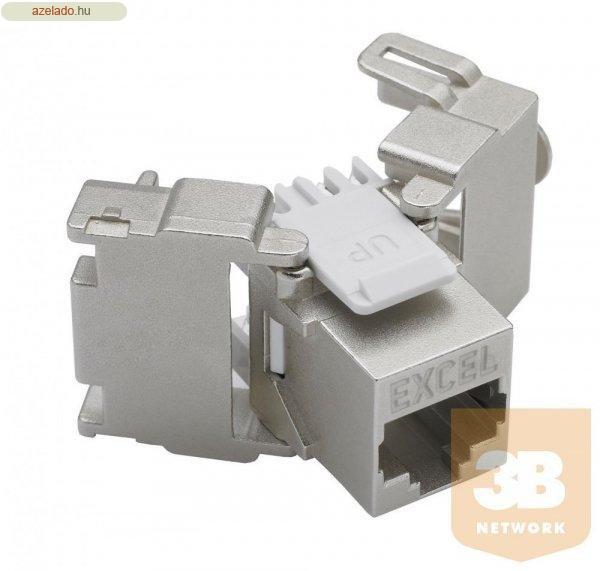

Excel Cat.5E FTP Keystone betét (szerszám nélkül szerelhető) 100-906 Description
Excel toolless jacks are one of the simplest methods of providing a high level
of repeatable quality of fast termination. Suitable for both traditional and
pre-terminated installations, each jack has a standard RJ45 keystone jack
footprint and is suitable for mounting in the Excel shutters, faceplates and
patch panel frames detailed in this catalogue. Termination is a quick and simple
three stage process, prepare and position the pairs from each cable within the
colour coded termination cap, once in place the termination cap is snapped onto
the IDC block, finally earth either the drain wire or overall braid screen to
the shield cap. Features Category 5e Fast, easy, reliable termination Clear IDC
termination colour coding Suitable for foil and braided screen cables Choice of
colours Features Category: 5E Model: Jack Type of connector: RJ45 8(8)
Connection type: Insulation displacement Colour: Silver AWG-range: 22...26
Shielded: yes Suitable for round cable: yes Suitable for flat cable: no Suitable
for solid core: yes Special tool necessary: no
