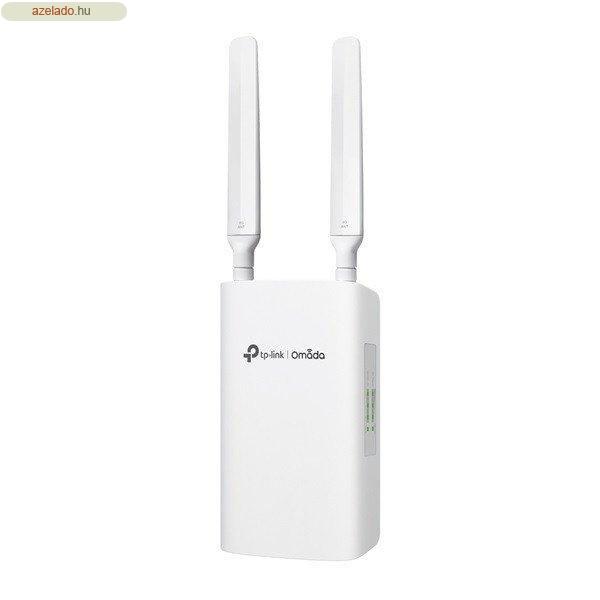

TP-LINK 3G/4G+ Omada AX3000 VPN Router 3xWAN/LAN(1000Mbps) Kültéri/Beltéri,
ER703WP-4G-OUTDOOR 4G Network Type LTE Band of EU:4G LTE-FDD:
B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)4G LTE-TDD:
B38/B40/B41 (2600/2300/2500 MHz)3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA:
B1/B3/B5/B8(2100/1800/850/900 MHz)Carrier
Aggregation:B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41B3+B3/B5/B7/B8/B20/B28/B38/B40/B41B5+B5/B7/B38/B40/B41B7+B7/B8/B20/B28/B32B8+B32/B38/B40/B41B20+B32/B38/B40B28+B32/B38/B40/B41B38+B38B40+B40B41+B41
SIM Type 1× Nano SIM Card Frequency ? Downlink: 300 Mbps;? Uplink: 50 Mbps
SECURITY DPI Application control via DPI / Updated app library Access Control
Source/Destination IP Based Access Control Filtering ? Web Group Filtering? URL
Filtering? Web Security ARP Inspection ? Sending GARP Packets? ARP Scanning?
IP-MAC Binding Attack Defense ? TCP/UDP/ICMP Flood Defense? Block TCP Scan
(Stealth FIN/Xmas/Null)? Block Ping from WAN HARDWARE FEATURES Interface ? 3
Gigabit WAN/LAN Ports Network Media ? 10BASE-T: UTP category 3, 4, 5 cable (Max
100 m) EIA/TIA-568 100? STP (Max 100 m)? 100BASE-TX: UTP category 5, 5e cable
(Max 100 m) EIA/TIA-568 100? STP (Max 100 m)? 1000BASE-T: UTP category 5, 5e, 6
cable (Max 100 m) Button Reset Button Power Supply 802.3at/bt PoE; 12VDC / 2A
Power Adapter Wi-Fi Frequency & Signal Rate ? 2.4 GHz: 574 Mbps? 5 GHz: 2402
Mbps (HE160) Flash 256 MB NAND DRAM 512 MB DDR4 LED 4G Signal, WLAN, WAN/LAN,
SYS Dimensions ( W x D x H ) 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm)
(Antenna dimensions are not included) Antenna ? Wi-Fi: Two 5GHz 4.0dBi &
2.4GHz 2.3 dBi dual-band build-inantennas? LTE: Two 4.0dBi omnidirectional
detachable antennas Mounting Pole/Wall-Mounting Max Power Consumption POE:62.9W
max @ 220V/50Hz 25?DC: 16.6W max @ 220V/50Hz 25? PERFORMANCE DPI Throughput ?
TCP: 1131 Mbps? UDP: 974 Mbps GRE ? Unencrypted: 450.3Mbps? Encrypted: 277.6Mbps
WireGuard VPN 462.8Mbps Concurrent Session 120,000 New Sessions /Second 3,800
NAT (Static IP) 945.9Mbps / 950.2Mbps NAT(DHCP) 947.3Mbps / 949.4Mbps NAT(PPPoE)
916.9Mbps / 946.3Mbps NAT (L2TP) 878.9Mbps / 778.9Mbps NAT (PPTP) 852.2Mbps /
775.9Mbps IPsec VPN Throughput ? ESP-SHA1-AES256: 568.3Mbps? ESP-SHA256-AES256:
559.8Mbps? ESP-SHA384-AES256: 565.6Mbps? ESP-SHA512-AES256: 550.0 Mbps OpenVPN
85.1Mbps L2TP VPN Throughput ? Unencrypted: 858.7Mbps? Encrypted: 467.0Mbps PPTP
VPN Throughput ? Unencrypted: 876.2Mbps? Encrypted: 182.6Mbps SSL VPN Throughput
86.6Mbps 66 Byte Packet forwarding rate 1,453,489 pps / 1,453,489 pps 1,518 Byte
Packet forwarding rate 81275 pps / 81275 pps WIRELESS FEATURES Advanced
Functions ? Seamless Roaming? Mesh (with EAP that supports Mesh)? OFDMA?
Beamforming? MU-MIMO? Rate Limit: Based on SSID/Client? Airtime Fairness?
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise? Multiple
SSIDs: 16 in total (8 per radio) Guest Network Support BASIC FUNCTIONS WAN
Connection Type ? Static IP? Dynamic IP? PPPoE (supports MRU Configuration)?
PPTP? L2TP MAC Clone Modify WAN Address DHCP ? DHCP Server? DHCPv6 PD Server
(only in Standalone Mode)? DHCP Options Customization? DHCP Address Reservation?
Multi-IP Interfaces? Multi-Net DHCP SMS Receive / Send SMS IPv6 StaticIP / SLAAC
/ DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode ADVANCED FUNCTIONS ACL
IP/Port/Protocol/Domain Name Filtering Advanced Routing ? Static Routing? Policy
Routing? RIP? OSPF Bandwidth Control IP-Based Bandwidth Control Load Balance ?
Intelligent Load Balance? Application Optimized Routing? Link Backup(Timing,
Failover)? Online Detection NAT ? One-to-One NAT? Multi-Net NAT? Virtual Server?
Port Triggering? NAT-DMZ? FTP/H.323/SIP/IPSec/PPTP ALG? UPnP Session Limit
IP-Based Session Limit VPN GRE Only in Standalone Mode SSL VPN 50 Tunnels IPsec
VPN ? 100 IPSec VPN Tunnels? LAN-to-LAN, Client-to-LAN? Main, Aggressive
Negotiation Mode? DES, 3DES, AES128, AES192, AES256 Encryption Algorithm? IPsec
Failover? IKE v1/v2? MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm?
NAT Traversal (NAT-T)? Dead Peer Detection (DPD)? Perfect Forward Secrecy (PFS)
PPTP VPN ? PPTP VPN Server? PPTP VPN Client (10)? 50 Tunnels? PPTP with MPPE
Encryption L2TP VPN ? L2TP VPN Server? L2TP VPN Client (10)? 50 Tunnels? L2TP
over IPSec OpenVPN ? OpenVPN Server? OpenVPN Client (5)? 55 OpenVPN Tunnels?
Certificate + Account Mode? Full Mode WireGuard VPN ? 20 Tunnels AUTHENTICATION
Web Authentication ? No Authentication? Simple Password? Hotspot (Local User /
Voucher / SMS / Radius)? External Radius Sever? External Portal Sever? LDAP
MANAGEMENT Omada App Yes. Centralized Management ? Omada Cloud Essentials? Omada
Cloud-Based Controller? Omada Hardware Controller (OC300)? Omada Hardware
Controller (OC200)? Omada Software Controller Cloud Access Yes. Service Dynamic
DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Maintenance ? Web
Management Interface? Remote Management? Export & Import Configuration? SNMP
v1/v2c/v3? Diagnostics (Ping & Traceroute)? NTP Synchronize? Port Mirroring?
CLI (only in Standalone Mode)? Syslog Support Management Features ? Automatic
Device Discovery? Intelligent Network Monitoring? Abnormal Event Warnings?
Unified Configuration? Reboot Schedule? Captive Portal Configuration OTHERS
Certification CE, FCC, RoHS Package Contents ? ER703WP-4G-Outdoor? Mounting
Kits? Quick Installation Guide System Requirements ? Microsoft Windows 98SE, NT,
2000, XP, Vista? or Windows 7/8/8.1/10/11? MAC OS, NetWare, UNIX or Linux
Environment ? Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)? Storage
Temperature: -40 °C to 70 °C (-40 °F to 158 °F)? Operating Humidity: 5% to 95%
non-condensing? Storage Humidity: 5% to 90% non-condensing
