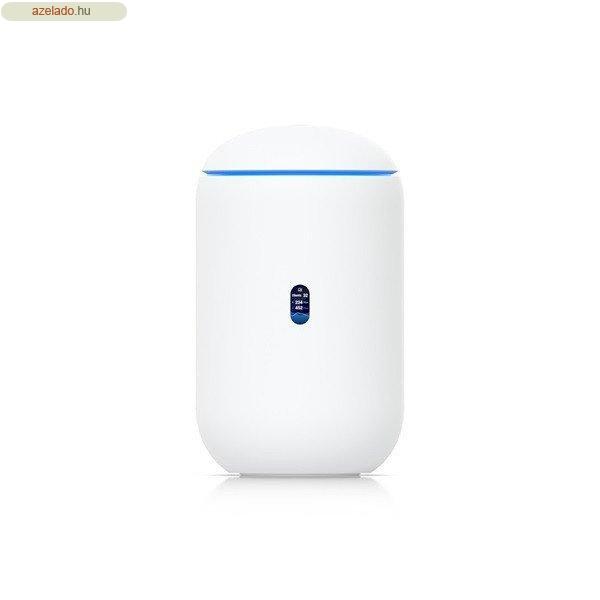

UBiQUiTi Dream Router TriBand 3x2,5Gbps (LAN) 1xPOE Out + 2xWAN (SFP+, RJ45),
WiFi7, Asztali - UDR7 Overview Dimensions O110 x 184.1 mm (O4.3 x 7.3) UniFi
Application Suite Network Yes Protect Yes Access Yes Talk Yes Connect Yes
Managed UniFi Devices 30+ Managed Cameras (5) HD (2) 2K (1) 4K Simultaneous
Users Connected 300+ Default WAN Ports (1) 10G SFP+ (1) 2.5 GbE RJ45 LAN Ports
(3) 2.5 GbE RJ45 including (1) PoE IDS/IPS Throughput 2.3 Gbps Form Factor
Compact desktop Security Stateful Firewall Yes Application-Aware Layer 7
Firewall Yes DPI & Traffic Identification Yes Zone-Based Firewall Advanced
Filtering (Regions, Domains, Apps) Yes Content Filtering Yes Intrusion
Prevention (IPS/IDS) Yes Ad Blocking Yes IDS/IPS Signatures 20,000+ with
CyberSecure VLAN/Subnet-based Traffic Segmentation Yes VPN & SD-WAN
License-Free SD-WAN Yes Site-to-Site VPN Site Magic Yes IPsec Yes OpenVPN Yes
VPN Server Identity Endpoint One-Click VPN Yes Teleport Zero-Configuration VPN
Yes WireGuard Yes OpenVPN Yes L2TP Yes VPN Client OpenVPN Yes WireGuard Yes
Networking Multi-WAN Load Balancing Yes Dynamic Routing OSPF Yes Advanced QoS
Yes Multicast DNS (mDNS) Yes Advanced NAT (SNAT / DNAT / Masquerade / NAT
Pooling / 1-to-1 NAT) Yes Integrated RADIUS Server Yes RADIUS over TLS (RadSec)
Yes Additional Internet Failover with UniFi LTE Backup Yes Internet Quality and
Outage Reporting Yes MAC Address Table Size 2,000 Policy-based WAN and VPN
Routing Yes Customizable DHCP Server Yes IPv6 ISP Support Yes IGMP Proxy Yes
Integrated WiFi WiFi Standard 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput 6 GHz 5.7 Gbps 5 GHz 4.3 Gbps 2.4 GHz 688 Mbps MIMO 6 GHz 2 x 2
(DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Antenna Gain 6 GHz 6 dBi 5 GHz 7 dBi 2.4 GHz 5 dBi Wireless Security WPA-PSK,
WPA-Enterprise (WPA/WPA2/WPA3/PPSK) Max. BSSIDs 4 per Radio Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6,
9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT
20/40) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT
20/40/80/160) 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE
20/40/80/160) 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT
20/40/80/160/240/320) Hardware NVR Storage Pre-installed 64GB microSD for NVR
Expansion Slot MicroSD Card PoE Budget 15.4W Max. PoE Wattage per Port by PSE
PoE 15.4W Voltage Range PoE Mode 44-57V Max. Power Consumption 26W (Excluding
PoE output) Power Method Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply AC/DC, Internal, 50W Max. TX Power 6 GHz 24 dBm 5 GHz 26 dBm 2.4
GHz 23 dBm Supported Voltage Range 100-240V AC Processor Quad-core ARMŽ
CortexŽ-A53 at 1.5 GHz System Memory 3 GB Weight 1.1 kg (2.4 lb) Enclosure
Material Polycarbonate LCM Display 0.96 status display Management Ethernet
Bluetooth LEDs System Yes ESD/EMP Protection Air: ą 8kV, contact: ą 4kV Ambient
Operating Temperature -10 to 40° C (14 to 104° F) Ambient Operating Humidity 5
to 95% noncondensing Certifications CE, FCC, IC Button (1) Factory-reset
Software VLAN 802.1Q Guest Traffic Isolation Yes Application Requirements UniFi
Network Version 9.0.108 and later
