EMRICK05B M.2 NVMe PCIe Card Model Number EMRICK05B SKU 110013707 Compliant
with PCI Express Specification Revision 3.0 Supports M.2 SSD in sizes 22*30mm,
22*42mm, 22*60mm and 22*80mm 1 x M Key M.2 socket for PCIe NVMe SSD with M/B+M
Key connector Simple Plug and Play installation Logistics data
Harmonized System (HS) code 847330 Customs product code
(TARIC) 8473302000 Others Drive compatibility
M.2 PCIe NVMe SSD Compatible operating systems Windows XP
Windows Vista Windows 7 Windows 8 Windows 10 Package
Contents EMRICK05B Multilingual quick installation guide Screws and
screwdriver Low profile bracket Silicone heat sink Physical
Specifications Dimensions (W x D x H) 40 x 18 x 102 mm
Product weight (kg) 0,042 General Color
Black EAN 4015867223673 Model Number EMRICK05B
System specifications Connector PCIe x4 PCI

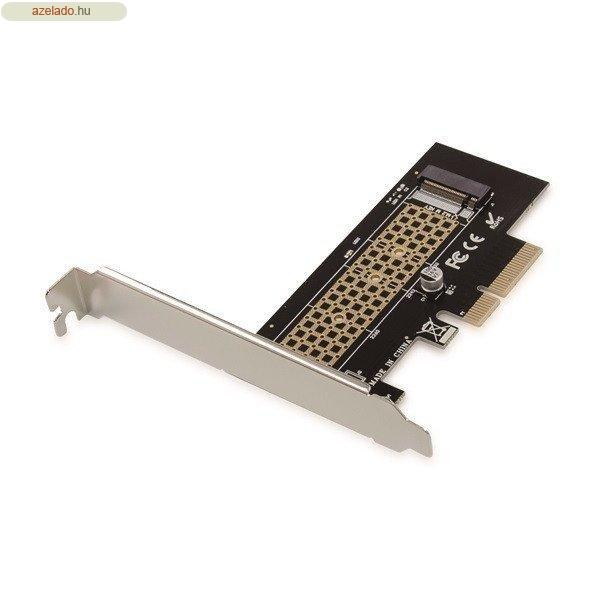

version PCIe 3.0 This M.2 NVMe SSD PCIe Adapter connects directly to the
motherboard, and features ultra-fast PCIe 3.0 X4 lanes which transmit bandwidth
up to 32GT/S. It also supports the majority of M.2 key M SSD drive sizes. This
adapter improves system speed, and will enhance the efficiency of office and
entertainment equipment.
